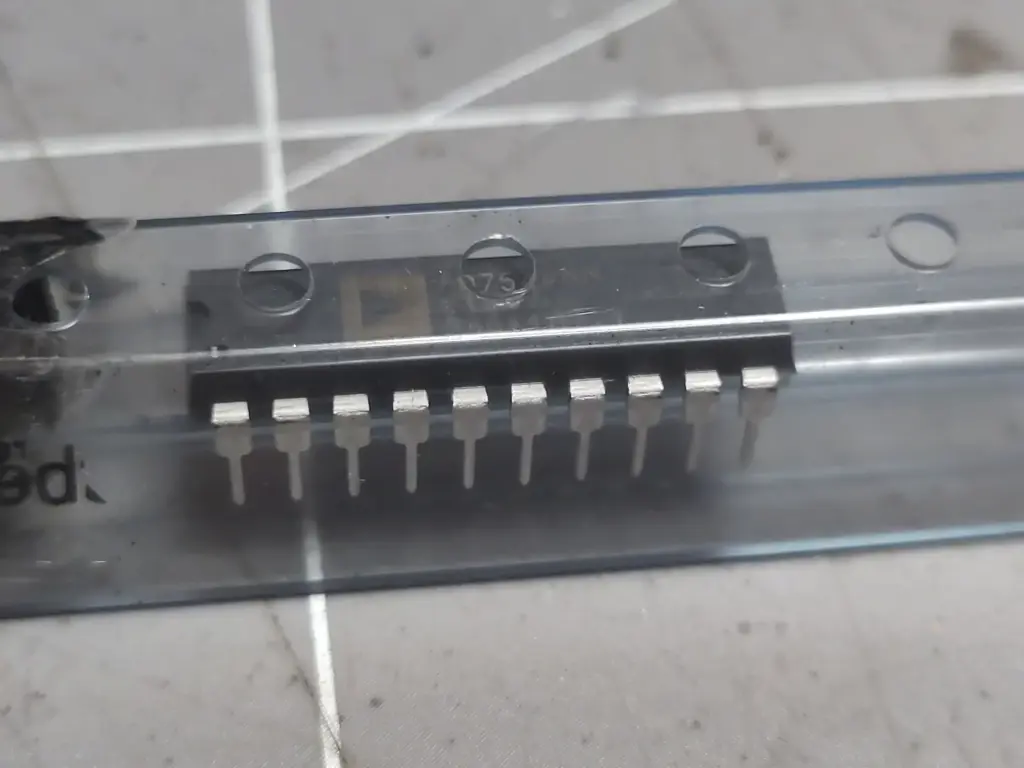

AD7545KN IC DAC 12BIT A-OUT 20DIP Analog Devices
AD7545KN IC DAC 12BIT A-OUT 20DIP Analog Devices
Product Description:
The AD7545 is a low-cost monolithic 12-bit, CMOS multiplying DAC with on-board data latches. Data is loaded in a single 12-bit wide word which allows interfacing directly to most 12-bit and 16-bit bus systems. Loading of the input latches is under the control of the CS and WR inputs. A logic low on these control inputs makes the input latches transparent allowing direct unbuffered operation of the DAC.
| Resolution | 12 Bits | |
| Accuracy | ±1 | |
| Supply voltage | 5 to 15 volts | |
| Data setup time | 120ns | |
| Input resistance | 7 to 25K ohms | |
| Compatibility | Fast TTL/CMOS | |
| Package | DIL-20 |
